No. |
Item |
General Parameter |
|
1 |
Rated Capacity |
1.5Ah |
|
2 |
Minimal Rated |
1.45Ah |
|
3 |
Nominal Voltage |
6.4V |
|
4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
|
5 |
Discharge cut-off voltage |
4.6V |
|
6 |
Charging cut-off voltage |
15.6V |
|
7 |
Cell and assembly method |
IFR18650EC-1.5AH 2s1p |
|
8 |
Standard discharge |
Constant current 0.2C |
|
9 |
Maximum Charge Current |
4.5A |
|
10 |
Maximum Discharge Current |
3 A |
|
11 |
Operation Temperature Range |
Charge: 0~45℃ |
|
|
|
Discharge: -10~50℃ |
|
13 |
Storage Temperature Range |
Less than 1 year : 0~25℃ |
|
|
|
Less than 3 months:-5~35℃ |
|
14 |
Weight |
Approx: 285g |
|
15 |

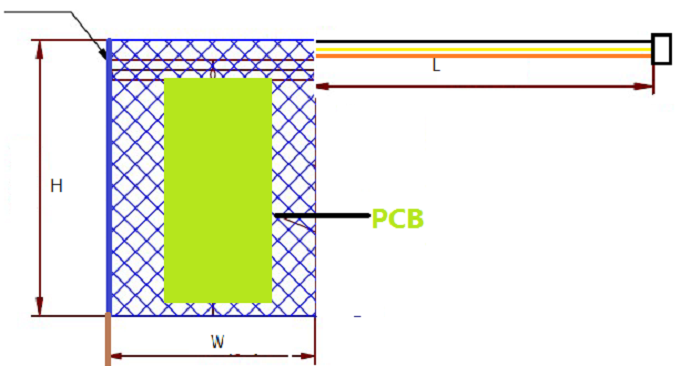

Pack Dimension |
High:71.5mm
|
The battery pack is design for the tracking device, and can be used many equipment such as below

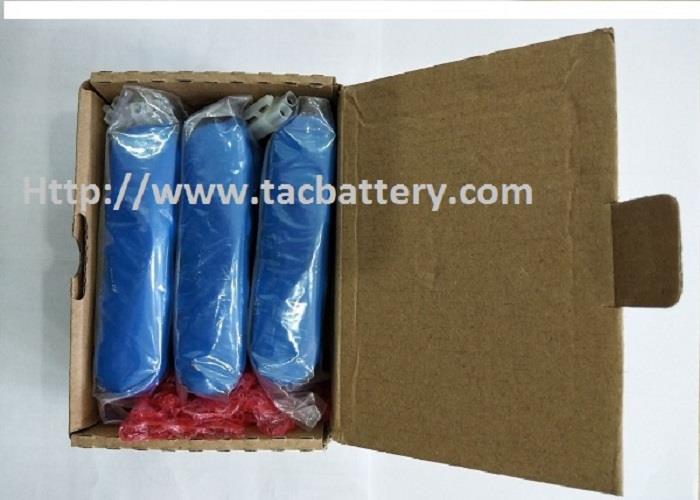

The battery pack put into double level transparency sponge bag, 4 sets for each inner paper box and 5-8 box for each standard export paper carton
with UN label on the outer carton

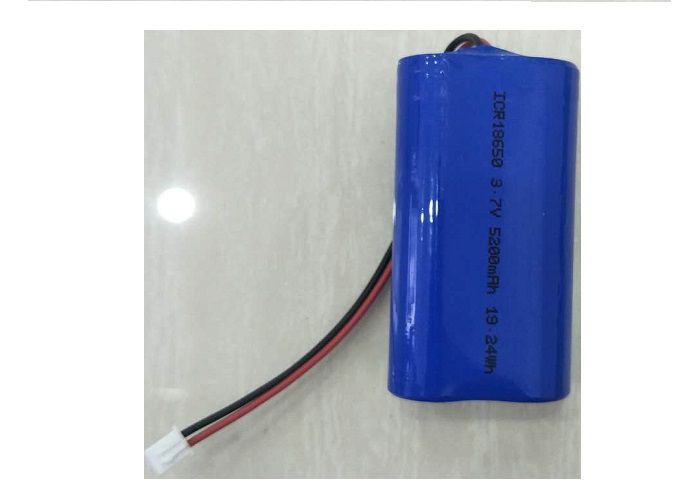

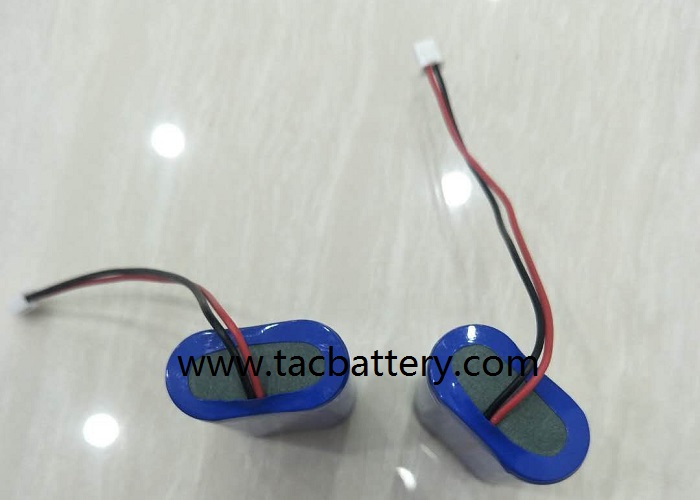

Pictures:
