48V Li-Ion Battery 48V 60Ah Lithium Battery for Telecom/Solar/UPS/Home Solar System
Quick Detail:
|
Place of Origin: |
Guang dong China |
Brand Name: |
TAC |
|
Nominal Voltage: |
48V |
Rated Capacity: |
60Ah |
|
Type: |
Li-Ion |
Size: |
600*190*443mm |
|
Noise emission |
<40dB |
Display |
LCD |
|
Color |
White/Black(customized) |
Protection Degree |
IP20 |
|
Weight: |
40kg |
Certification |
UN, ROHS, REACH ,BIS |
|
OEM & ODM: |
Support |
Warranty: |
12months |
|
Features: 1. 48V Li-Ion Battery 48V60Ah Lithium Battery. 2. Lighter weight, smaller size. 3. Display: LCD 4. Environmentally friendly non-toxic, non-contaminating, no rare metal. |
|||
48V Li-Ion Battery 48V 60Ah Lithium Battery Specification:
|
Parameters |
ES2.9KWhPV1 |
|
Battery Type |
Li-Ion |
|
Rated Voltage/ Capacity |
48V/60Ah |
|
Rated Energy |
2.9KWh |
|
Usable Capacity (80%DOD) |
2.3KWh |
|
Voltage Range |
45～54.7VDC |
|
Rated Discharge Current |
25A |
|
Max. Discharge Current |
60A |
|
Standard Charge Current |
25A |
|
Max.Charge Current |
60A |
|
Operating Temperature |
Charge:0°C ~50°C； |
|
Discharge -20°C~50°C; |
|
|
Storage Temperature |
-20°C~50°C |
|
Ambient Humidity |
Max. 90[%Rh] *Non Condensing |
|
Expected Lifetime (25°C/+77℉) |
＞5 Years |
|
Cycle life (80% DOD, 25°C/+77℉) |
＞2000Cycles |
|
Max. operating altitude |
2000m |
|
Dimensions(W*H*D) |
600*190*443mm |
|
Weight |
40kg |
|
Color |
White/Black(customized) |
|
Protection Degree |
IP20 |
|
Cooling |
Natural |
|
Noise emission |
<40dB |
|
Display |
LED light |
|
Interface |
RS232,RS485 |
48V Li-Ion Battery 48V 60Ah Lithium Battery Capacity indication
|
Status |
Charge |
Discharge |
||||||
|
Capacity |
L4 |
L3 |
L2
|
L1
|
L4
|
L3
|
L2
|
L1
|
|
0～25% |
Off |
Off |
Off |
Flash |
Off |
Off |
Off |
On |
|
25～50% |
Off |
Off |
Flash |
On |
Off |
Off |
On |
On |
|
50～75% |
Off |
Flash |
On |
On |
Off |
On |
On |
On |
|
≥75% |
On |
On |
On |
On |
On |
On |
On |
On |
|
Status● |
On |
Flash |
||||||

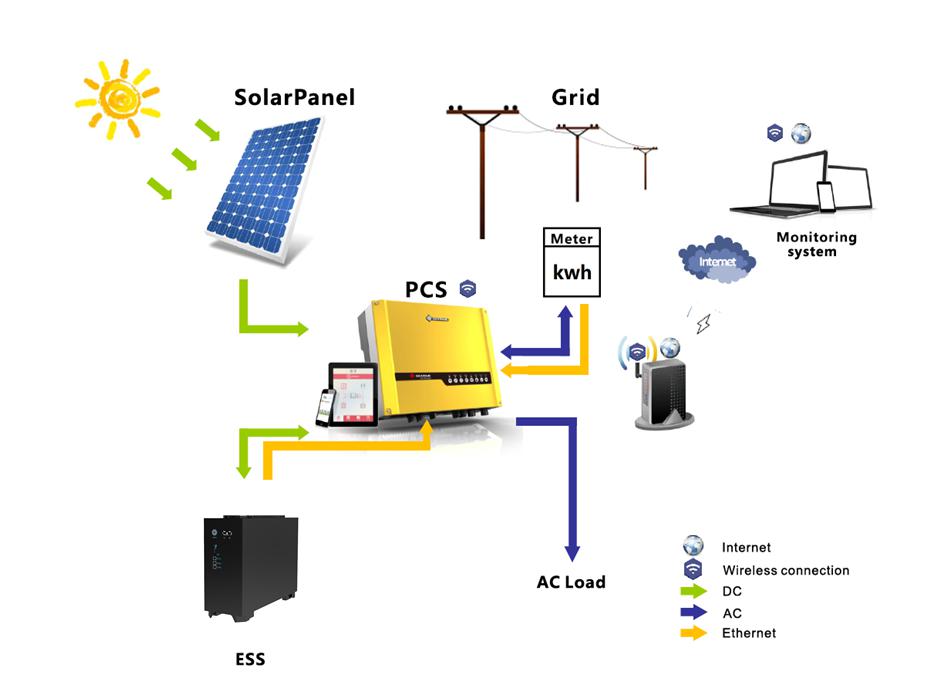

Application
