Feature
Nominal Voltage is 6.4V standard capacity is 1500mAh base on IEC test standard
the battery assembled with PCM, wire , the connector with customer's require
Have a long cycle life about 2000 times.
Specially size design for solar lawn and Solar street lighting
|
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
1500mAh |
Standard discharge(0.2C)after standard charge(0.2C) |
|
2 |
Minimal Rated |
1450mAh |
|
|
3 |
Nominal Voltage |
6.4V |
|
|
4 |
Cycle Life |
Higher than 60% of the Initial Capacity of the Cells |
Charge: CC@0.5C to 7.3V, then CV till current to 0.05C |
|
5 |
Discharge cut-off voltage |
14.6v |
5.0V(recommended) |
|
6 |
Charging cut-off voltage |
15.6V |
14.6V(recommended) |
|
7 |
Cell and assembly method |
IFR18650-1500mAH |
2S1P |
|
8 |
Standard discharge |
Constant current 0.2C |
|
|
9 |
Maximum Charge Current |
3A |
|
|
10 |
Maximum Discharge Current |
6A |
Over current 20±2A 9mS |
|
11 |
Operation Temperature Range |
Charge: 0~45℃ |
|
|
|
|
Discharge: -10~50℃ |
|
|
13 |
Storage Temperature Range |
Less than 1 year : 0~25℃ |
60±25%R.H. at the shipment state |
|
|
|
Less than 3 months:-5~35℃ |
|
|
14 |
Weight |
Approx: 120g |
|
|
15 |
Pack Dimension |
Width: 20mm Length: 38mm
|
|
The battery pack protected by small sponge bag one by one
then put the3-5 bags into standard paper box , 5-8 box for one standard carton
Other Bigger Capacity Solar Battery Pack

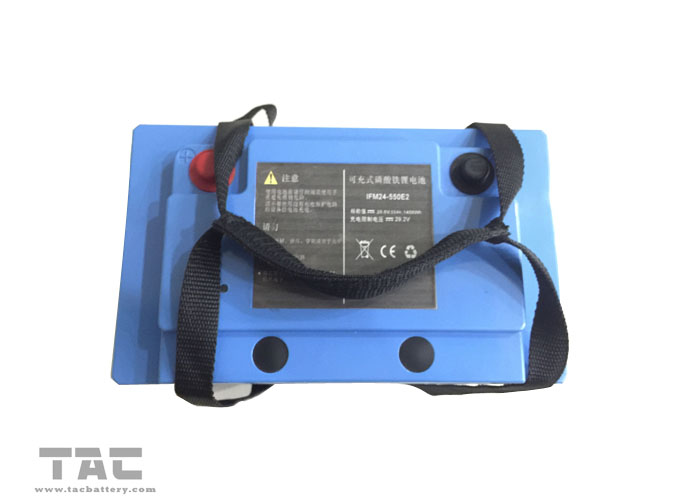

55AH 24V For street lighting
Delivery
Cell Blue PVC jacket or OEM brand
Delivery Detail less than 1000pcs, one day after receipt of T/T
1000pcs-10, 000pcs, one week after receipt of T/T
100, 000pcs above, one month after receipt of T/T
