Item |
General Parameter |
Remark |
|
truth Capacity
|
1000mAh |
charge the battery by Standard charge method: （0.2C）to 10.96V, then CV till current to 0.02C, Standard discharge by（0.2C）to 7.5V; and then record the data
|
|
Mini Capacity
|
950mAh |
|
|
open Voltage
|
3.2V-3.65v |
|
|
charge and discharger time
|
over 80% of the original Capacity of the Cells |
stand Charge: CC@0.2C to 10.96V, then CV till current to 0.02C stock the battery: 30min. stand Discharge: 0.2C to 10.0V keep the Temperature in 20±5℃ circle life: 2000 times |
|
Discharge voltage |
2.5V |
|
|
full Charging voltage |
3.65V |
100% full charging |
|
pack in series |

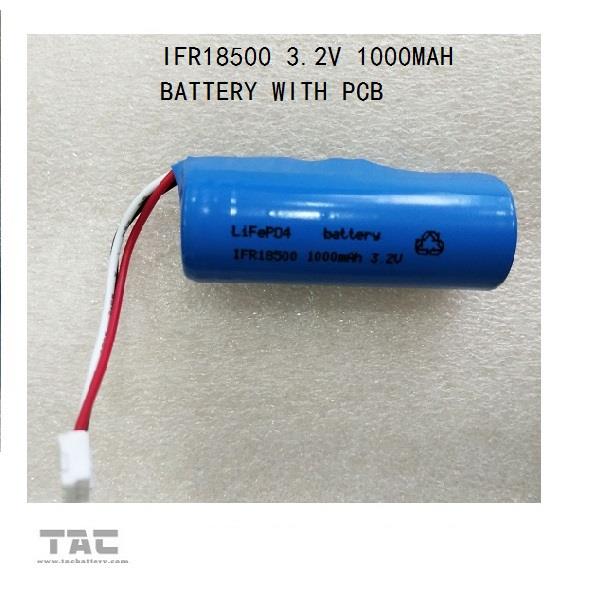

IFR18500-1000MAH |
1S1P |
|
Packing |
PVC shrink |
color : blue for battery cell and battery pack |
|
NO |
Items |
Units: mm |
Remark |
|
|
1 |
diameter/ |
D |
20mm |
Max. |
|
3 |
Height/ |
H |
70mm |
Max. |
|
4 |
lead |
L |
50mm |
|
|
5 |
Printing |
|
li-ion 30 IFR18500 1S1P 3.2V 1.0AH TAC PIFPXXXX |
|
TAC guarantees to replacement the good battery with free for shipping fee
if the battery defects be proved due to manufacturing process instead of the customer abuse and misuse
within 1 year from the date of shipment.
the batteries should be charged about once per half a year to prevent over-discharge to avoid self discharger
room temperature is ok for the stock.
normally keep charged to about 30% to 50% of capacity.
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected
Avoid shorting the battery
Avoid excessive physical shock or vibration
Do not disassemble or deform the battery.
Humidity test : +40±2 ºC 90%RH 48Hours
High temperature test : +55±2 ºC 2Hours
Low temperature test : -20±2 ºC 16Hours
ESD test : Normal operation in all parts at ±4KV (contact) ±8KV (AIR) condition
