The Polymer Lithium Ion Battery (LP) features the following:

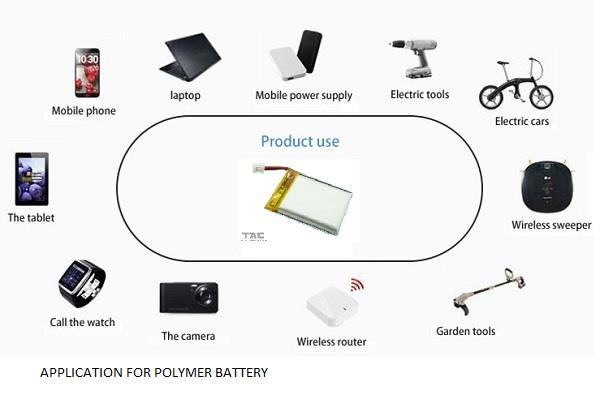

UAM ,Mobile phone, notebook PC, Bluetooth, PDA, MP3/MP4, smart card, portable DVD player, camcorder, UPS, Power tools,LEV, HEV and EV etc.
|
No. |
Item |
Rated Performance |
Remark |
|
|
1 |
Rated Capacity |
Minimum |
90mAh |
Standard discharge(0.2C C5A) after Standard charge |
|
2 |
Nominal Voltage |
3.7V |
Mean Operation Voltage During Standard Discharge After Standard Charge |
|
|
3 |
Voltage at end of Discharge |
3.0V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
4.2±0.03V |
|
|
|
5 |
AC (1KHz) Impedance New Cell Max.(mW) |
≤120mΩ |
|
|
|
6 |
Standard charge |
Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off |
Charge time : Approx 4.0h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5A end voltage 3.0 V |
|
|
|
8 |
Fast charge |
Constant Current Constant Voltage 0.01 C5A cut-off |
Charge time : |
|
|
9 |
Fast discharge |
Constant current 1C5A end voltage 3.0 V |
|
|
|
10 |
Maximum Continuous Charge Current |
1 C5A |
|
|
|
11 |
Maximum Continuous Discharge Current |
1.5 C5A |
|
|
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. Be Cell |
|
|
Discharge: -20~60℃ |
||||
|
13 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. at the shipment state |
|
|
less than 3 months: -20~40℃ |
||||
|
14 |
Weight |
Approx :10g |
Bare Cell |
|
|
15 |

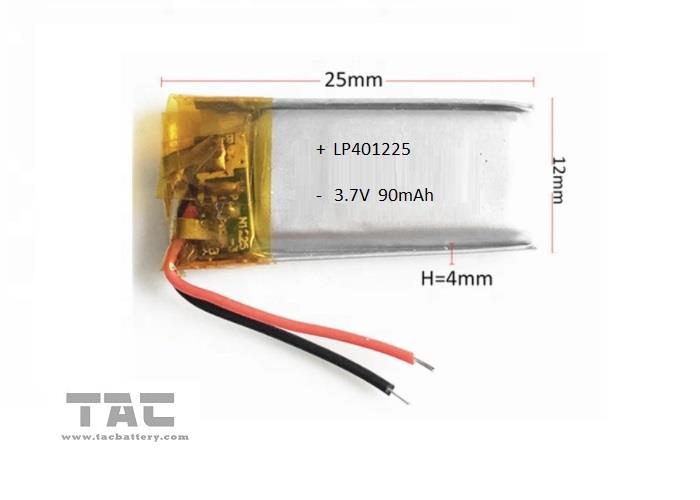

Cell Dimension |
Length: Max.25.5mm |
Initial Dimension |
|
|
Width: Max.12.5mm |
||||
|
Thickness: Max. 4.2mm |
||||

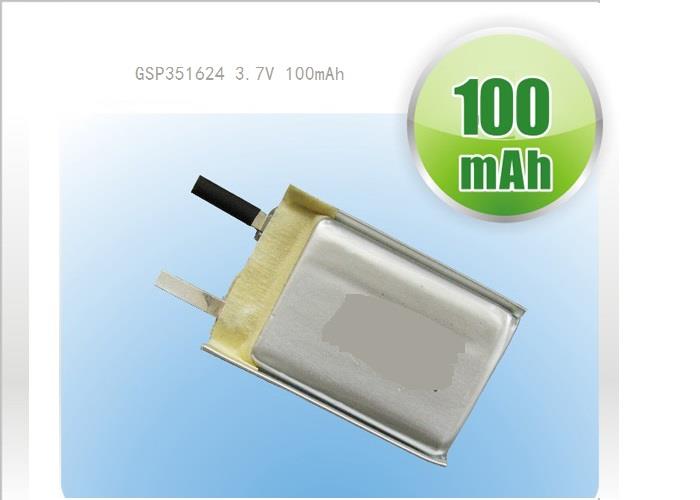

similar size and capacity
The period of warranty is six months from the date of shipment. Great Power guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per year to prevent over discharge.
