LiFePO4 IFR32650 3.2V 6Ah With UL

Item No.: 00201
IFR32650 LiFePO4 Battery Cell 3.2V 6Ah with SGS UL UN38.3 REACH Specification Features * High quality , the higest capacity 6 ah for 32*65 size * Factory price, fast delivery ,mass production 50000pcs per week
Description
Description

IFR32650 LiFePO4 Battery Cell 3.2V 6Ah with SGS UL UN38.3 REACH



Specification

Nominal Capacity 6000mAh Cell Configuration cylinder
Mimimum Capacity 5950mAh Internal Impedance 25mΩ
Nominal Voltage 3.2V Dimensions(mm) 32.5mm(dia.)*65.5mm(ht.)
Discharge Cut-off Voltage 2.0V Weight 150 g
Charge Cut-off Voltage 3.65 V Charge Temperature Range 0°C~45°C
Standard Charging Current 1000mA Discharge Temperature Range -10°C~60°C
Standard Discharge Current 1000mA Charge Method CC/CV
Fast Charging Current 6000mA Storage Temperature Range Less than 1 year:-20~25°C
Less then 3 months:-20~40°C
Max Discharging Current 18000mA Cycle Life (80% DOD) 3000 cycles
Maximum Continuous Charge Current 1C Maximum Continuous Discharge Current 3C



Features

* High quality , the higest  capacity 6 ah for 32*65 size

* Factory price, fast delivery ,mass production 50000pcs per week

* Long cycle life, No memory effec over 2000 times

* High safety, environment friendly with Reach

* High working voltage for single battery cells, full charge 3.65 V

* Widely application for electronics and industries

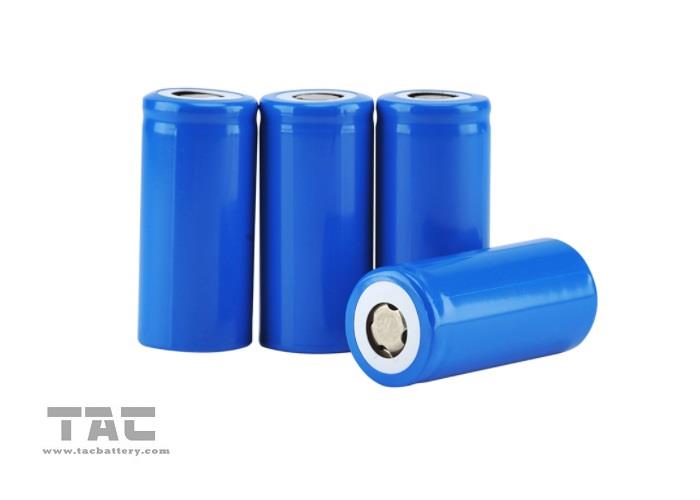

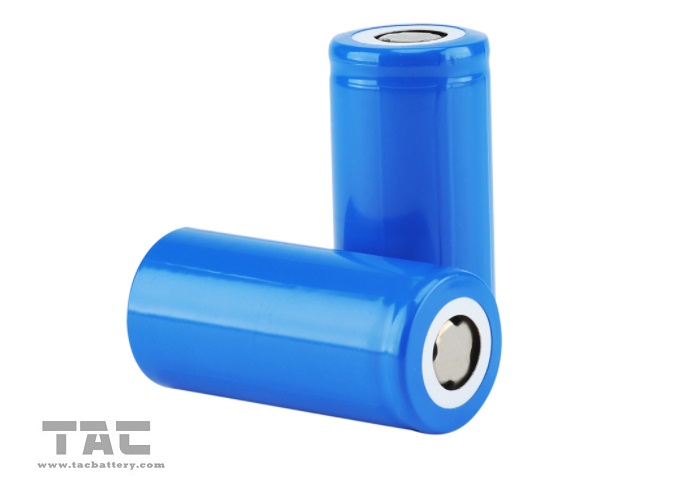

Battery Photo
