| No. | Items | Specifications |
Remark |
| 1 |
Nominal Capacity |
8000mAh |
0.2C Standard discharge |
| 2 |
Minimum Capacity |
8000mAh | |
| 3 |
Nominal Voltage |
3.7V |
Mean Operation Voltage |
| 4 |
Delivery voltage |
≥3.7V |
Within 90 days from Factory |
| 5 |
Charge Voltage |
4.2V±0.03V |
By standard charge method |
| 6 |
Standard charging method |
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C |
|
| 7 |
Charge current |
0.2C |
Standard charge, charge time:6.5h(Ref) |
| 0.5C |
Rapid Charge, charge time:4.5h(Ref) |
||
| 8 |
Standard dischargemethod |
0.2C constant current discharge to 3.0V, | |
| 9 |
Discharge cut-off voltage |
3.0V |
By standard discharge method |
| 10 |
Cell Internal Impedance |
≤60mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
| 11 |
Maximum charge current |
0.5C |
For continuous charging mod |
| 12 |
Maximum discharge current |
0.5C |
For continuous discharge mod |
| 13 |
Weight |
200.0±5.0g |
whatever the polymer lithium battery pack or single cell will be similar with below

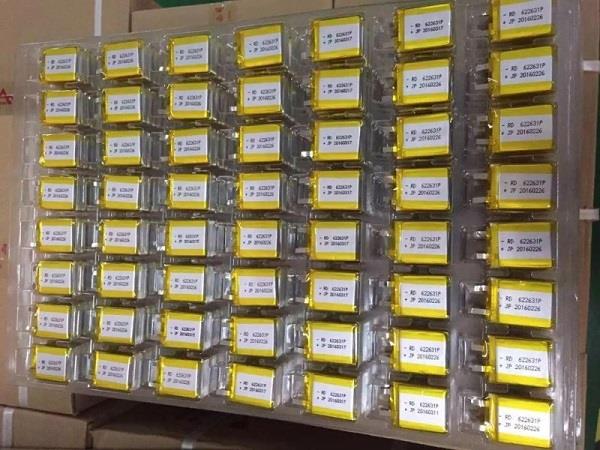

20 single battery put in the ROHS plastic tray and 10-12 tray in one strong paper carton
After the customer sign the pi , we will ship the cargo from factory within 20 -25 days
When we confirm all the detail for the battery pack , 30-35 days will send the cargo if you need customized
Shipped out the cargo by air sea UPS DHL TNT and other express with your require
Application
Application for Lipo Battery 0865158 3.7V 8000mAh Cells Square Soft pack for wireless
The battery customized for wireless equipment, high capacity 8000mah with protect board wire and connector.
And the polymer battery cell can be used in below service
Flexible Size Meet Your Design
| model | capacity | voltage | resistance | Thickness | width | length |
| W7517123-1600 | 1600 | 3.7 | 28 | 7.13 | 17.53 | 122.71 |
| W683759-1600 | 1600 | 3.7 | 33 | 6.24 | 36.83 | 59.33 |
| W953450-1700 | 1700 | 3.7 | 40 | 9.37 | 34.13 | 50.81 |
| W404884-1800 | 1800 | 3.7 | 35 | 4.14 | 47.34 | 82.56 |
| W103450-1800 | 1800 | 3.7 | 40 | 9.86 | 35.12 | 50.74 |
| W753758-1800 | 1800 | 3.7 | 45 | 7.57 | 36.82 | 60.68 |
| W504865-1800 | 1800 | 3.7 | 5.08 | 47.54 | 65.27 | |
| W8517123-1800 | 1800 | 3.7 | 40 | 7.93 | 18.1 | 122.87 |
| W605559-2000 | 2000 | 3.7 | 30 | 5.27 | 55.48 | 60.11 |
| W853562-2000 | 2000 | 3.7 | 40 | 8.23 | 35.5 | 62.7 |
| W455095-2000 | 2000 | 3.7 | 40 | 4.04 | 50.5 | 95.6 |
| W683090-2000 | 2000 | 3.7 | 25 | 6.95 | 30.6 | 90.8 |
| W904448-2000 | 2000 | 3.7 | 45 | 8.7 | 42.87 | 47.97 |
| W485967-2000 | 2000 | 3.7 | 50 | 4.42 | 59.64 | 68.71 |
| W545069-2100 | 2100 | 3.7 | 30 | 5.15 | 50.5 | 69.6 |
| W504884-2150 | 2150 | 3.7 | 35 | 4.9 | 48.6 | 85 |
| 853080-2200 | 2200 | 3.7 | 18 | 8.15 | 30.5 | 80.6 |
| W683885-2400 | 2400 | 3.7 | 30 | 6.38 | 38.4 | 85.8 |
| W705060-2400 | 2400 | 3.7 | 35 | 6.93 | 50.59 | 60.69 |
| W953760-2400 | 2400 | 3.7 | 35 | 9.09 | 35.77 | 60.68 |
| W3261100-2400 | 2400 | 3.7 | 30 | 3.31 | 61.79 | 99.39 |
| W5828135-2500 | 2500 | 3.7 | 25 | 5.62 | 27.68 | 135.3 |
| W554884-2500 | 2500 | 3.7 | 30 | 5.49 | 48.5 | 84.6 |
| W704865-2500 | 2500 | 3.7 | 35 | 7.1 | 47.89 | 65.48 |
| 823090-2600 | 2600 | 3.7 | 20 | 7.93 | 30.02 | 90.1 |
| 805060-2700 | 2700 | 3.7 | 20 | 8.02 | 50.12 | 60.98 |
| W505095-3000 | 3000 | 3.7 | 30 | 5 | 50.3 | 95.8 |
| 4048135-3000 | 3000 | 3.7 | 15 | 3.85 | 49.76 | 135.96 |
| W103773-3000 | 3000 | 3.7 | 35 | 9.77 | 36.46 | 73.39 |
| W854069-3000 | 3000 | 3.7 | 30 | 8.7 | 40.86 | 69.71 |
| 6034125-3000 | 3000 | 3.7 | 35 | 6.29 | 33.79 | 124.9 |
| W784284-3150 | 3150 | 3.7 | 40 | |||
| 6045100-3300 | 3300 | 3.7 | 14 | 6.02 | 45.6 | 100.8 |
| 4867102-3400 | 3400 | 3.7 | 15 | 4.17 | 67.3 | 102.5 |
| 5548135-4300 | 4300 | 3.7 | 8 | 5.51 | 48.6 | 135.9 |
| W7052114-4500 | 4500 | 3.7 | 25 | 6.34 | 52.95 | 116.32 |
| 6848135-5000 | 5000 | 3.7 | 10 | 6.38 | 48.5 | 136.4 |
| 806580-5000 | 5000 | 3.7 | 8 | 8.45 | 65.56 | 80.6 |
| 104884-5000 | 5000 | 3.7 | 8 | 9.88 | 48.35 | 83.29 |
| W7543128-5000 | 5000 | 3.7 | 22 | 7.12 | 42.21 | 128.93 |
| DW7250114-5400 | 5400 | 3.7 | 20 | 7.72 | 51.46 | 120.9 |
| DW9053117-6000 | 6000 | 3.7 | 18 | 7.9 | 53.97 | 117.48 |
| 6272145-7500 | 7500 | 3.7 | 15 | 5.67 | 71.5 | 146.01 |
| 85100115-12000 | 12000 | 3.7 | 3.5 | 9.03 | 98.97 | 114.25 |
| 1070170-15000 | 15000 | 3.7 | 5 | 9.96 | 69.96 | 170.66 |
| 1055275-20000 | 20000 | 3.7 | 2.2 | 9.44 | 55.5 | 275.6 |
