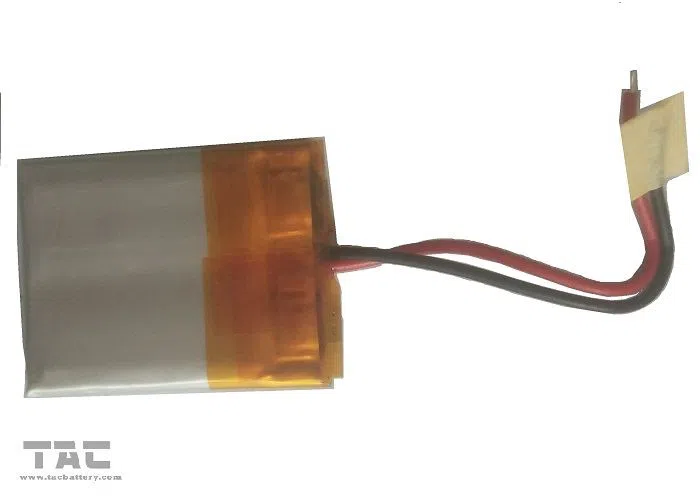

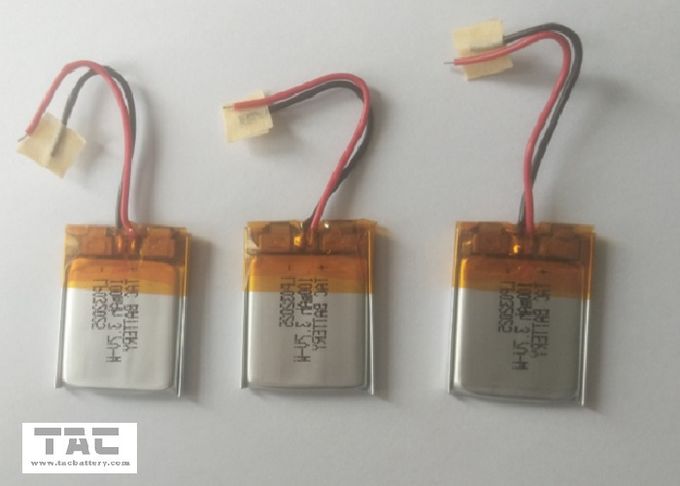

Type
|
3.7v rechargeable lithium polymer battery | ||
|
Brand
|
TAC or OEM
|
||
|
Model
|
LP032025
|
||
|
Voltage
|
3.7V
|
||
|
Capacity
|
100-1100mah
|
||
|
Cycle life
|
300- 500 times
|
||
|
Jacket
|
Alu/PVC
|
||
|
Chemical System
|
Lithium Polymer Battery
|
||
|
Certification
|
CE/CB/UN38.3/MSDS
|
||
|
Demension
|
3*25*20 Or customize | ||
|
Package
|
Blister card, industrial package or customized...
|
||
|
PCB/PCM
|
With or without,both workable
|
||
|
Cables
|
16#,18#,20#....
|
||
| Connector | Accept customized requirement | ||
| Sample | Can be offer for testing | ||
Mobile phones, tablets, Bluetooth earphone, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, LED lights, quadcopters, drones ,etc.
E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.
| NO | Items | Units: mm | Remark | |
| 1 | Thickness | T | 3.0 | Max. |
| 2 | Width | W | 21.0 | Max. |
| 3 | Height | H | 28.0 | Max. |
| 4 | Connector | L | 50±3 | |
| 5 | Wire/ | L1 | 1.5~2.0 | |

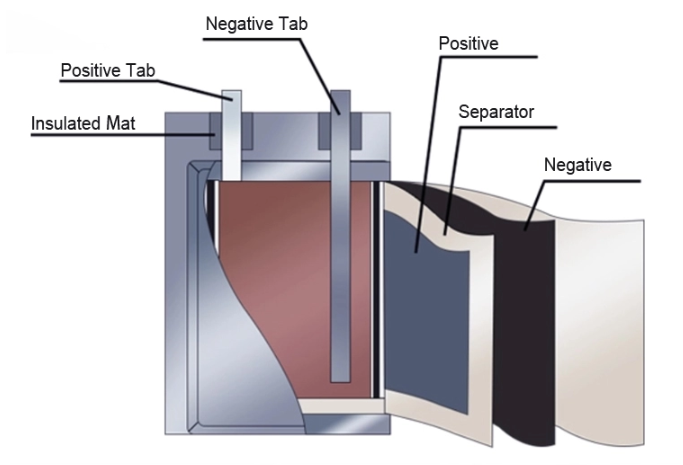

Structure Diagram For Polymer Lithium Battery
| Model | Capacity | Resistance | Voltage |
| 651221 | 110 | ≤300 | 3.7 |
| 051225L | 100 | ≤320 | 3.7 |
| 051225H | 110 | ≤280 | 3.7 |
| 061225 | 100 | ≤250 | 3.7 |
| 651225 | 130 | ≤280 | 3.7 |
| 041230 | 100 | ≤300 | 3.7 |
| 451230 | 135 | ≤200 | 3.7 |
| 051230 | 130 | ≤220 | 3.7 |
| 551230 | 140 | ≤200 | 3.7 |
| 041235 | 120 | ≤260 | 3.7 |
| 451235 | 130 | ≤220 | 3.7 |
| 051235 | 150 | ≤150 | 3.7 |
| 651235 | 150 | ≤150 | 3.7 |
| 031245 | 120 | ≤280 | 3.7 |
| 481321 | 100 | ≤300 | 3.7 |
| 351429 | 100 | ≤300 | 3.7 |
| 041429 | 120 | ≤200 | 3.7 |
| 041429H | 140 | ≤200 | 3.7 |
| 051429 | 150 | ≤180 | 3.7 |
| 551518 | 100 | ≤300 | 3.7 |
| 651518 | 120 | ≤280 | 3.7 |
The battey put into plastic pallet ,28pcs for one pallets 10 pallets for one carton.
